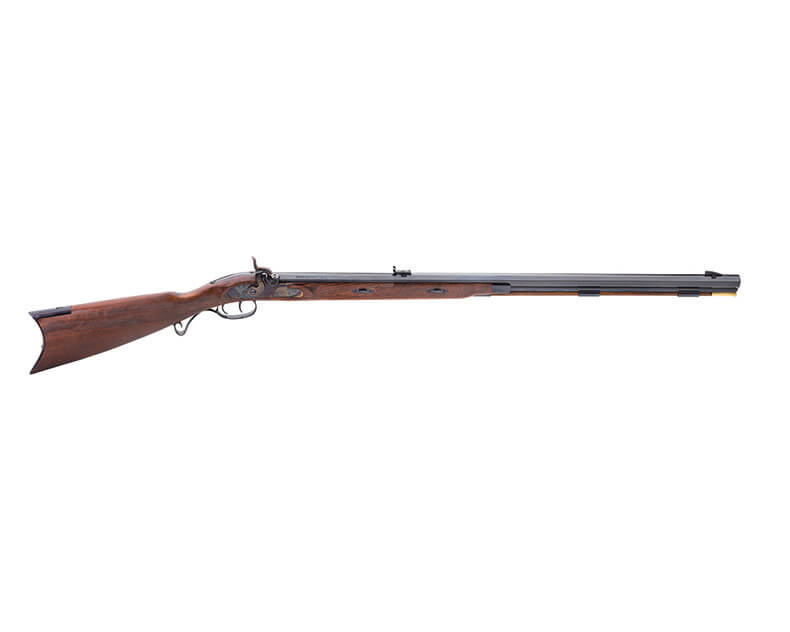

Muzzle loading rifle, percussion lock; available in .45 - .50 and .54 caliber; 32" octagon rifled barrel; adjustable double set triggers; adjustable or fixed rear sight; rich walnut stock with authentic lines; browned barrels and other steel parts. Available also as assembly kit.
- Rifling
- Maximum Loads
- More Details
| Caliber | Barrel Length | Number of Rifle | Twist | Rate of Twist |
|---|---|---|---|---|
| .45 | 32” | 12 | DX | 1:48” |
| .50 | 32” | 5 | DX | 1:60” (*) |
| .54 | 32” | 5 | DX | 1:60” (*) |
Maximum combinations of propellant and projectile for Investarm muzzle loading firearms do not exceed. Use only black powder and nothing else. Heavier loads are not to be used nor is a substitution of powder granulation to be attempted.
Investarm is not accountable for loading information printed in sources other than this instruction manual.
| Caliber | Projectile | Propellant | |
|---|---|---|---|
| FFG | FFFG | ||
| .45 | .440 round ball | 5,20 grs | 3,55 grs |
| .45 | 14 grs ogival bullet | 4,85 grs | 3,25 grs |
| .50 | .490 round ball | 5,85 grs | 4,55 grs |
| .50 | 24 grs ogival bullet | 5,20 grs | 3,90 grs |
| .54 | .530 round ball | 6,50 grs | 5,20 grs |
| .54 | 26 grs ogival bullet | 5,85 grs | 4,55 grs |
Ignition
Percussion: for caplock use only N° 11 percussion caps.
Flintlock: for flintlock fill pan cavity with G-O FFFFg or G-0 FFFg.
Projectile
Muzzle loading projectiles are cast from pure lead. Do not use lead alloys for they contain antimony and a re far too hard for muzzle loading use.
